- Commodity name: BM833AF, BM833A
BM833A, BM833AF, nRF52811 Long Range Bluetooth 5.2, Thread, Zigbee Module
BM833A and BM833AF are Bluetooth Low Energy, BLE 5.2 modules using Nordic nRF52811 SoC with integrated high performance PCB trace antenna.

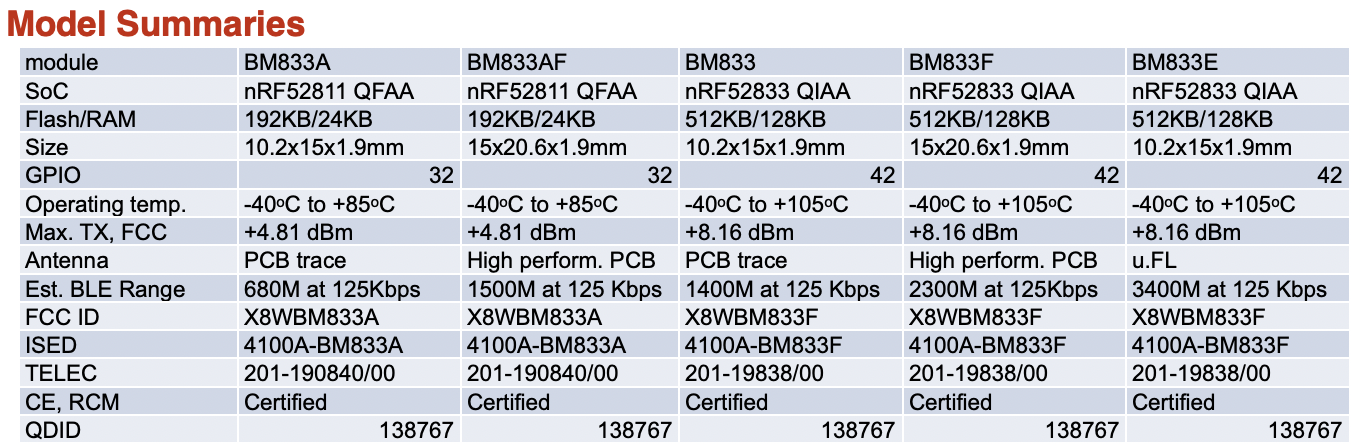

Differences between modules:
-
Size of BM833A is 10.2x15x1.9 mm; BM833AF is 10.2 (15 antenna area) x 20.6x1.9mm
-
Range between two BM833As is estimated at 340 meters at 1Mbps; between two BM833AF is 760 meters.
BM833A Series are pin to pin compatible with BM832A nRF52810 module. Three main differences:
-
Supports BLE 5.1 Direction Finding.
-
Supports BLE 5 CODY PHY at 500 Kbps and 125 Kbps for longer range
Supports Thread and Zigbee radio protocols.
nRF52833 modules, BM833, BM833F, and B833E offer more memories, more GPIOs, higher TX power, and operate from -40C to +105C.
Specifications
-
Nordic nRF52811 QFAA with ARM Cortex M4 (no Floating Point Unit)
-
192 KB flash, 24 KB RAM
-
Complete RF solution with integrated antenna
-
Bluetooth range, estimated: 760 meters at 1Mbps and 1400 meters at 125 Kbps with at least 60% .
-
128-bit AES HW encryption
-
Serial Wire Debug (SWD)
-
Nordic SoftDevice Ready
-
Over-The-Air (OTA) firmware update
Up to 32 GPIOs, firmware configurable and Peripherals
-
12 bit/200KSps ADC, 8 configurable channels with programmable gain
-
64 level comparator
-
15 level low power comparator with wake-up from system OFF mode
-
Temperature sensor
-
3x 4-channel pulse width modulator (PWM) units with EasyDMA
-
Digital microphone interface (PDM)
-
5x 32 bit timers with counter mode
-
Up to 3x SPI Master/Slave with Easy DMA
-
Up to 2x I2C compatible 2-wire master/slave
-
I2S with EasyDMA
-
UART (CTS/RTS) with EasyDMA
-
Programmable peripheral interconnect (PPI)
-
Quadrature Demodulator (QDEC)
-
AES HW encryption with EasyDMA
-
Autonomous peripheral operation without CPU intervention using PPI and Easy DMA
-
3x real time counter (RTC)
Power:
-
Operation voltage: 1.7V to 3.6V
-
Peak current: 4.6 mA RX, 4.6 mA TX at 0 dBm.
-
0.3 uA OFF mode, 1.1 uA idle
RF Performance
-
RX sensitivity: -97 dBm
-
TX power: -20 to +4 dBm in 4 dB steps
Miscellaneous
-
Operation Temperature: -40°C to +85°C
-
Integrated shield to resist EMI
-
Evaluation board: EV-BM833A and EV-BM833AF
-
Availability: Production
Certifications:
-
FCC ID: X8WBM833A
-
IC (Industrial Canada) ID: 4100A-BM833A
-
Europe: Compliant
-
Japan: 201-190840/00
-
Australia: Compliant
-
QDID: 138767
